Diaphragm / Nozzle
JINYOUNG TBX designs and manufactures turbine diaphragms and nozzles that control and accelerate steam or gas flow between rotating blade rows. Our components are engineered to provide accurate flow control, pressure drop and stage efficiency while maintaining dimensional stability under high temperature, pressure and cyclic loading.
Products
Selected Diaphragm / Nozzle (1982''026)We provide diaphragm and nozzle solutions that stabilize flow, improve stage efficiency and support long-term turbine reliability.

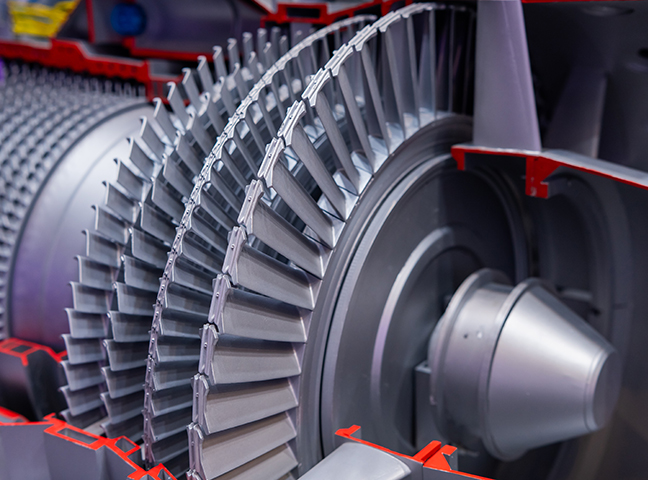

HP Steam Turbine Diaphragm Set

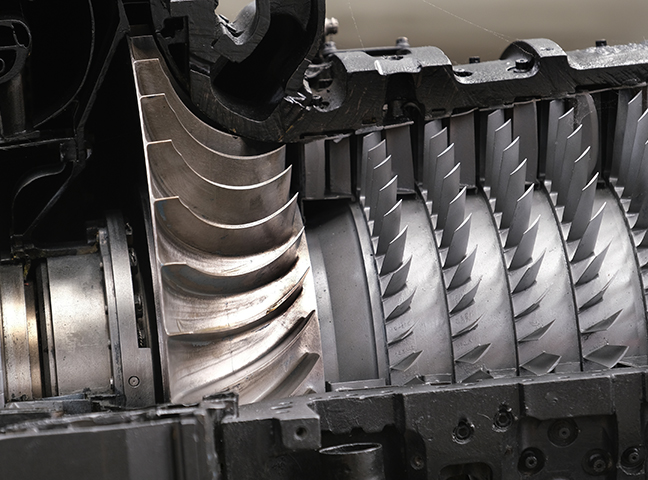

IP / LP Nozzle Segment Package

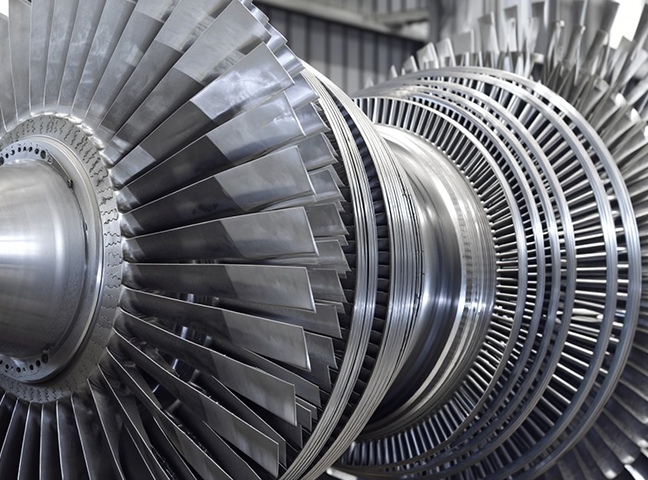

Retrofit Diaphragm / Nozzle Upgrade

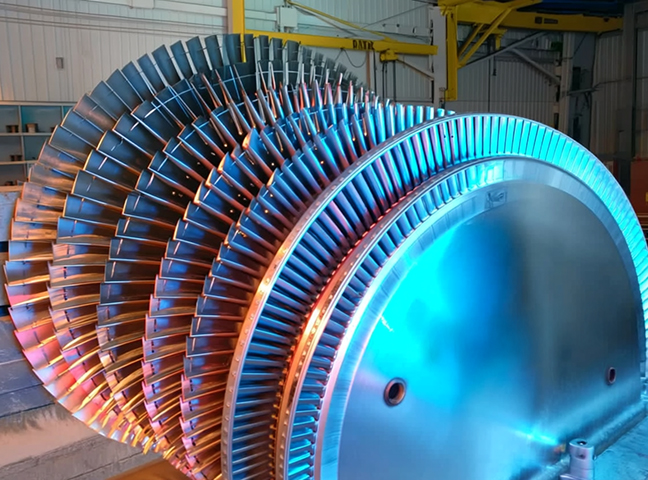

Coated Gas Turbine Nozzle Ring
Industrial Turbine Diaphragm

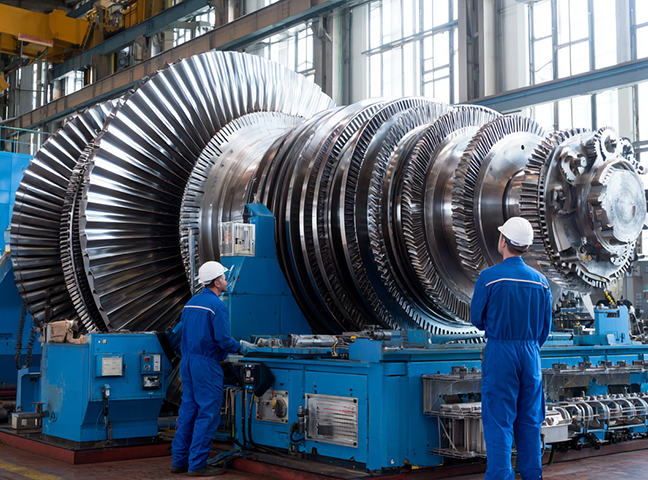

Nozzle / Diaphragm Refurbishment Set
Jinyoung TBX
Product Advantages
Flow Accuracy & Efficiency
Diaphragms and nozzles are manufactured with tight control of throat area, profile and surface finish to maintain design flow angles, pressure drop and stage efficiency across a wide operating range.
Robustness & Maintainability
We select materials, welds and joints that resist erosion, corrosion and thermal cycling, and we design for easier assembly, alignment and future refurbishment during turbine overhauls.
Partnership & Lifecycle Support
From new-build units to retrofit and life-extension projects, we collaborate with customers on design reviews, reverse engineering and upgrade concepts to keep their turbines competitive over the long term.
